Are the FRA and European Operators Sabotaging Texas Central?
Texas Central is a planned high-speed rail system connecting Dallas with Houston, using turnkey Shinkansen technology and private funding. The trains to be used are lightweight Japanese-made N700s, with extremely good performance, and the operating paradigm is to be based on the Shinkansen, without any interface with legacy rail, even in city centers. However, there may still be some conflict with regulators over this, since American rail regulations, since 2018, have been based on European/UIC standards and not on Japanese ones, which are distinct and incompatible. This is supposed to be okay because there is no track sharing at all, the same model proposed by California High-Speed Rail before US regulations under the supervision of the FRA were realigned with UIC ones. And yet, there may be trouble.
None of this is news – these are documents from 2020. See for example here:
Some commenters asserted that FRA is exempting TCRR from any crashworthiness requirements so that the N700 series trainset technology could be imported. This assertion, however, is not supported by the requirements proposed in the NPRM, as FRA makes clear that its approach is to ensure that the trainset is safe for the environment in which it will operate. To this end, FRA is including additional requirements that are not inherent in the JRC approach to trainset structure design. These requirements include a dynamic collision scenario analysis that is designed to address the residual risks that could potentially exist within the TCRR operating environment.32Of particular note, in this instance, is the inclusion of the steel coil collision scenario outlined in § 299.403(c). Despite the safety record of JRC’s Tokaido Shinkansen system, FRA believes that the North American environment poses unique risks with respect to potential objects that might somehow enter the protected ROW, either by accident or on purpose. In this case, FRA believes that requiring dynamic collision scenario analysis using the 14,000-lbs steel coil scenario derived from existing requirements to protect against risks presented by grade crossings can serve as a conservative surrogate for potential hazards that might be present on the TCRR ROW (e.g., feral hogs, stray livestock, unauthorized disposal of refuse). With the inclusion of this dynamic collision scenario, and adaptations of existing U.S. requirements on emergency systems and fire safety, FRA believes it has reasonably addressed risks unique to the TCRR operating environment in a manner that appropriately considers crashworthiness and occupant protection standards for the operating environment intended, while at the same time keeping intact the service-proven nature of the equipment.PDF-pp. 34-35
Of note, the FRA speaks of grade crossings on a line that has none, and demands trains to withstand the impact of a 6.35 ton steel ball that may be dropped from overpasses that do not exist.
This is likely malicious more than incompetent; advocates I know out of California suspect a specific unnamed staffer placed by Ed Rendell who is trying to sabotage the project. This may also involve some lobbying by European vendors, which constantly snipe at competitors within the American market, and even by individual consultants. California had a little bit of this, when competitors started spreading rumors that SNCF was a pro-Nazi organization, and even got some state legislators to make a testimonial bill designed to embarrass SNCF.
It’s a real danger of assuming that foreign public companies that behave responsibly at home will behave responsibly in your periphery. SNCF is subject to public pressure within France, which limits its ability to extract surplus out of riders; this pressure vanishes even right next to France, with majority-SNCF-owned services to Britain (Eurostar) and Belgium (Thalys), which charge considerably higher fares, let alone in the US. The same is true of the other vendors, really, and thus in Britain, franchises owned by EU state-owned railroads like SNCF, DB, and NS are unpopular. Outsourcing the state even to vendors with a track record of responsibility at home will not lead to responsible results, because such outsourcing is an admission that the American state is not capable of adequately overseeing such a project itself and therefore will not notice extravaganza.
Tilting Trains and Technological Dead-Ends
The history of tilting trains is on my mind, because it’s easy to take a technological advance and declare it a solution to a problem without first producing it at scale. I know that 10 years ago I was a big fan of tilting trains in comments and early posts, based on both academic literature on the subject and existing practices. Unfortunately, this turned into a technological dead-end because the maintenance costs were too high, disproportionate to the real speed benefits, and further work has gone in different directions. I bring this up because it’s a good example of how even a solution that has been proven to work at scale can turn out to be a dead-end.
What is tilting?
It is a way of getting trains to run at higher cant deficiency.
What is cant deficiency?
Okay. Let’s derive this from physical first principles.
The lateral acceleration on a train going on a curve is given by the formula a = v^2/r. For example, if the speed is 180 km/h, which is 50 m/s, and the curve radius is 2,000 meters, then the acceleration is 50^2/2000 = 1.25 m/s^2.
Now, on pretty much any curve, a road or railway will be banked, with the outer side elevated above the inner side. On a railway this is not called banking, but rather superelevation or cant. That way, gravity countermands some of the centrifugal force felt by the train. The formula on standard-gauge track is that 150 mm of cant equal 1 m/s^2 of lateral acceleration. The cant is free speed – if the train is perfectly canted then there is no centrifugal force felt by the passengers or the train systems, and the balance between the force on the inner and outer rail is perfect, as if there is no curve at all.
The maximum superelevation on a railway is 200 mm, but it only exists on some Shinkansen lines. More typical of high-speed rail is 160-180 mm, and on conventional rail the range is more like 130-160; moreover, if trains are expected to run at low speed, for example if the line is dominated by slow freight traffic or sometimes even if the railroad just hasn’t bothered increasing the speed limit, cant will be even lower, down to 50-80 mm on many American examples. Therefore, on passenger trains, it is always desirable to run faster, that is to combine the cant with some lateral acceleration felt by the passengers. Wikipedia has a force diagram:

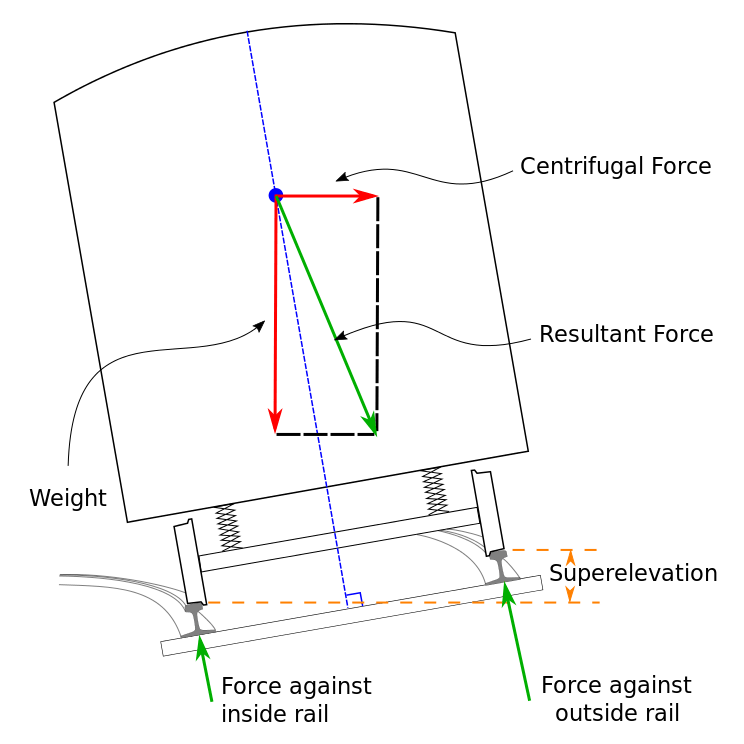

The resultant force, the downward-pointing green arrow, doesn’t point directly toward the train floor, because the train goes faster than the balance speed. This is fine – some lateral acceleration is acceptable. This can be expressed in units of acceleration, that is v^2/r with the contribution of cant netted out, but in regulations it’s instead expressed in theoretical additional superelevation required to balance, that is in mm (or inches, in the US). This is called cant deficiency, unbalanced superelevation, or underbalance, and follows the same 150 mm = 1 m/s^2 formula on standard-gauge track.
Note also that it is possible to have cant excess, that is negative cant deficiency. This occurs when the cant chosen for a curve is a compromise between faster and slower trains, and the slower trains are so much slower the direction of the net force is toward the inner rail and not the outer rail. This is a common occurrence when passenger and freight trains share a line owned by a passenger rail-centric authority (a freight rail-centric one will just set the cant for freight balance). It can also occur when local and express passenger trains share a line – there are some canted curves at stations in southeastern Connecticut on the Northeast Corridor.
The maximum cant deficiency is ordinarily in the 130-160 mm range, depending on the national regulations. So ordinarily, you add up the maximum cant and cant deficiency and get a lateral acceleration of about 2 m/s^2, which is what I base all of my regional rail timetables on.
You may also note that the net force vector is not just of different direction from the vertical relative to the carbody but also of slightly greater magnitude. This is an issue I cited as a problem for Hyperloop, which intends to use far higher cant than a regular train, but at the scale of a regular train, it is not relevant. The magnitude of a vector consisting of a 9.8 m/s^2 weight force and a 2 m/s^2 centrifugal force is 10 m/s^2.
Okay, so how does tilt interact with this?
To understand tilt, first we need to understand the issue of suspension.
A good example of suspension in action is American regulations on cant deficiency. As of the early 2010s, the FRA regulations depend on train testing, but are in practice, 6″, or about 150 mm. But previously the blanket rule was 3″, with 4-5″ allowed only by exception, mocked by 2000s-era advocates as “the magic high-speed rail waiver.” This is a matter of carbody suspension, which can be readily seen in the force diagram in the above secetion, in which the train rests on springs.
The issue with suspension is that, because the carbody is sprung, it is subject to centrifugal force, and will naturally suspend to the outside of the curve. In the following diagram, the train is moving away from the viewer and turning left, so the inside rail is on the left and the the outside rail is on the right:
The cant is 150 mm, and the cant deficiency is held to be 150 mm as well, but the carbody sways a few degrees (about 3) to the outside of the curve, which adds to the perceived lateral acceleration, increasing it from 1 m/s^2 to about 1.5. This is typical of a modern passenger train; the old FRA regulations on the matter were based on an experiment from the 1950s using New Haven Railroad trains with unusually soft suspension, tilting so far to the outside of the curve that even 3″ cant deficiency was enough to produce about 1.5 m/s^2 of lateral force felt by the passengers.
By the same token, a train with theoretically perfectly rigid suspension could have 225 mm of cant deficiency and satisfy regulators, but such a train doesn’t quite exist.
Here comes tilt. Tilt is a mechanism that shifts the springs so that the carbody leans not to the outside of the curve but to its inside. The Pendolino technology is theoretically capable of 300 mm of cant deficiency, and practically of 270. This does not mean passengers feel 1.8-2 m/s^2 of lateral acceleration; the train’s bogies feel that, but are designed to be capable of running safely, while the passengers feel far less. In fact the Pendolino had to limit the tilt just to make sure passengers would feel some lateral acceleration, because it was capable of reducing the carbody centrifugal force to zero and this led to motion sickness as passengers saw the horizon rise and fall without any centrifugal force giving motion cues.
Two lower cant deficiency-technology than Pendolino-style tilt are notable, as those are not technological dead-ends, and in fact remain in production. Those are the Talgo and the Shinkansen active suspension. The Talgo has no axles, and incorporates a gravity-based pendular system in which the train is sprung not from the bottom up but from the top down; this still isn’t enough to permit 225 mm of cant deficiency, but high-speed versions like the AVRIL permit 180, which is respectable. The Shinkansen active suspension is computer-controlled, like the Pendolino, but only tilts 2 degrees, allowing up to 180 mm of cant deficiency.
What is the use case of tilting, then?
Well, the speed is higher. How much higher the speed is depends on the underlying cant. The active tilt systems developed for the Pendolino, the Advanced Passenger Train, and ICE T are fundamentally designed for mixed-traffic lines. On those lines, there is no chance of superelevating the curves 200 mm – one freight locomotive at cant excess would demolish the inner track, and the freight loads would shift unacceptably toward the inner rail. A more realistic cant if there is much slow freight traffic is 80 mm, in which case the difference between 150 and 300 mm of cant deficiency corresponds to a speed ratio of .
Note that the square root in the formula, coming from the fact that acceleration formula contains a square of the speed, means that the higher the cant, the less we care about cant deficiency. Moreover, at very high speed, 300 mm of cant deficiency, already problematic at medium speed (the Pendolino had to be derated to 270), is unstable when there is significant wind. Martin Lindahl’s thesis, the first link in the introduction, runs computer simulations at 350 km/h and finds that, with safety margins incorporated, the maximum feasible cant deficiency is 250 mm. On dedicated high-speed track, the speed ratio is then , a more modest ratio than on mixed track.
The result is that for very high-speed rail applications, Pendolino-level tilting was never developed. The maximum cant deficiency on a production train capable of running at 300 km/h or faster is 9″ (230 mm) on the Avelia Liberty, a bespoke train that cost about double per car what 300 km/h trains cost in Europe. To speed up legacy Shinkansen lines, JR Central and JR East have developed active suspension, stretching the 2.5 km curves of the Tokaido Shinkansen from the 1950s and 60s to allow 285 km/h with the latest N700 trains, and allowing 360 km/h on the 4 km curves of the Tohoku Shinkansen.
What happened to the Pendolino?
The Pendolino and similar trains, such as the ICE T, have faced high maintenance costs. Active tilting taxes the train’s mechanics, and it’s inherently a compromise between maintenance costs and cant deficiency – this is why the Pendolino runs at 270 mm where it was originally capable of 300 mm. The Shinkansen’s active suspension is explicitly a compromise between costs and speed, tilted toward lower cant deficiency because the trains are used on high-superelevation lines. The Talgo’s passive tilt system is much easier to maintain, but also permits a smaller tilt angle.
The Pendolino itself is a fine product, with the tilt removed. Alstom uses it as its standard 250 km/h train, at lower cost than 350 km/h trains. It runs in China as CRH5, and Poland bought a non-tilting Pendolino fleet for its high-speed rail service.
Other medium-speed tilt trains still run, but the maintenance costs are high to the point that future orders are unlikely to include tilt. Germany has a handful of tilt trains included in the Deutschlandtakt, but the market for them is small. Sweden is happy with the X2000, but its next speedup of intercity rail will not involve tilting trains on mostly legacy track as Lindahl’s thesis investigated, but conventional non-tilting high-speed trains on new 320 km/h track to be built at a cost that is low by any global standard but still high for how small and sparsely-populated Sweden is.
In contrast, trainsets with 180 mm cant deficiency are still going strong. JR Central recently increased the maximum speed on the Tokaido Shinkansen from 270 to 285 km/h, and Talgo keeps churning out equipment and exports some of it outside Spain.
Metro-North Doesn’t Know Best Industry Practices
Governor Ned Lamont’s plan for speeding up trains between New York, New Haven, and Hartford seems to have fallen by the wayside, but Metro-North and the Connecticut Department of Transportation are still planning for future investments. Several high-level officials met with the advocates from the Connecticut Commuter Rail Council, and the results are unimpressive – they have made false statements out of ignorance of not just best practices outside North America but also current federal regulations, including the recent FRA reform.
The meeting link is a video and does not have a searchable transcript, so I’m going to give approximate timestamps and ask that people bear with me. At several points, highly-paid officials make statements that are behind the times, unimaginative, or just plain incorrect. The offenders are Richard Andreski, the bureau chief of public transportation for CDOT, who according to Transparency.CT earns a total of $192,000 a year including fringe benefits, and Glen Hayden, Metro-North’s vice president of engineering, who according to See Through NY earns an annual base salary of $219,000.
20-25 minutes: there’s a discussion, starting a few minutes before this timestamp, about Metro-North’s future rolling stock procurement. In addition to 66 M8 electric multiple units (EMUs), the railroad is planning to buy 60 unpowered railcars. Grilled about why buy unpowered railcars rather than multiple units, such as diesel multiple units (DMUs), Andreski said a few questionable things. He acknowledged that multiple units accelerate faster than locomotive-hauled trains, but said that this was not needed on the lines in question, that is the unpowered Metro-North branch lines, Shore Line East, and the New Haven-Hartford line. In reality, the difference, on the order of 45 seconds per stop at a top speed of 120 km/h (55 seconds if the top speed is 144 km/h), and electrification both massively increases reliability and saves an additional 10 seconds per stop (or 30 if the top speed is 144).
More worryingly, Andreski talks about the need for flexibility and the installed base of diesel locomotives. He suggests unpowered cars are more compatible with what he calls the train of the future, which runs dual-mode. Dual-mode trains today are of low quality, and the innovation in the world focuses on single-mode electric trains, with a growing number of railroads electrifying as well as transitioning to multiple units. Metro-North itself is a predominantly EMU-based railroad – running more EMUs, especially on the already-wired Shore Line East, is more compatible with its existing infrastructure and maintenance regime than keeping low-performing diesel branches and running diesel under catenary on the trunk line.
1:14-1:17: Andreski states that the 60 unpowered single-level cars should cost about $250 million, slightly more than $4 million per car. When a reader of this blog noted that in the rest of the world, a 25-meter multiple-unit costs $2.5 million, Andreski responded, “this is not accurate.” The only trouble is, it is in fact accurate; follow links to contracts reported in Railway Gazette in the rolling stock cost section of this post. It is not clear whether Andreski is lying, ignorant, or in a way both, that is making a statement with reckless disregard for whether it is true.
Hayden then chimes in, talking about FRA regulations, saying that they’re different from American ones, so European and Asian prices differ from American ones, seemingly indifferent to the fact that he just threw Andreski under the bus – Andreski said that multiple-units do not cost $2.5 million per car and if a public contract says they do then it’s omitting some extra costs. The only problem is, FRA regulations were recently revised to be in line with European ones, with specific eye toward permitting European trains to run on American tracks with minimal modifications, measured in tens of thousands of dollars of extra cost per car. In a followup conversation off-video, Hayden reiterated that position to longtime reader Roger Senserrich – he had no idea FRA regulations had been revised.
Hayden’s response also includes accessibility requirements. Those, too, are an excuse, albeit a slightly defensible one: European intercity trains, which are what American tourists are most likely to have experience with, are generally inaccessible without the aid of conductors and manual boarding plates. However, regional trains are increasingly fully accessible, at a variety of floor heights, and it’s always easier to raise the floor height to match the high platforms of the Northeast Corridor than to lower it to match those of low-platform networks like Switzerland’s.
1:45: asked about why Metro-North does not run EMUs on the wired Shore Line East, a third official passes the buck to Amtrak, saying that Amtrak is demanding additional tests and the line is Amtrak’s rather than Metro-North’s property. This is puzzling, as 1990s’ Amtrak planned around electrification of commuter rail service east of New Haven, to the point of constructing its substations with room for expansion if the MBTA were ever interested in running electric service on the Providence Line. It’s possible that Amtrak today is stalling for the sake of stalling, never mind that commuter rail electrification would reduce the speed difference with its intercity trains and thus make them easier to schedule and thus more reliable. But it’s equally possible that CDOT is being unreasonable; at this point I would not trust either side of any Amtrak-commuter rail dispute.
FRA Reform is Here!
Six and a half years ago, the Federal Railroad Administration announced that it was going to revise its passenger train regulations. The old regulations required trains to be unusually heavy, wrecking the performance of nearly every piece of passenger rolling stock running in the United States. Even Canada was affected, as Transport Canada’s regulations mirrored those south of the border. The revision process came about for two reasons: first, the attempt to apply the old rules to the Acela trains created trains widely acknowledged to be lemons and hangar queens (only 16 out of 20 can operate at any given time; on the TGV the maximum uptime is 98%), and second, Caltrain commissioned studies that got it an FRA waiver, which showed that FRA regulations had practically no justification in terms of safety.
The new rules were supposed to be out in 2015, then 2016, then 2017. Then they got stuck in presidential administration turnover, in which, according to multiple second-hand sources, the incoming Republican administration did not know what to do with a new set of regulations that was judged to have negative cost to the industry as it would allow more and lower-cost equipment to run on US tracks. After this limbo, the new rules have finally been published.
What’s in the new regulations?
The document spells out the main point on pp. 13-20. The new rules are similar to the relevant Euronorm. There are still small changes to the seats, glazing, and emergency lighting, but not to the structure of the equipment. This means that unmodified European products will remain illegal on American tracks, unlike the situation in Canada, where the O-Train runs unmodified German trains using strict time separation from freight. However, trains manufactured for the needs of the American market using the same construction techniques already employed at the factories in France, Germany, Switzerland, and Sweden should not be a problem.
In contrast, the new rules are ignoring Japan. The FRA’s excuse is that high-speed trains in Japan run on completely dedicated tracks, without sharing them with slower trains. This is not completely true – the Mini-Shinkansen trains are built to the same standards as the Shinkansen, just slightly narrower to comply with the narrower clearances on the legacy lines, and then run through to legacy lines at lower speed. Moreover, the mainline legacy network in Japan is extremely safe, more so than the Western European mainline network.
On pp. 33-35, the document describes a commenter who most likely has read either my writings on FRA regulations or those of other people who made the same points in 2011-2, who asked for rules making it possible to import off-the-shelf equipment. The FRA response – that there is no true off-the-shelf equipment because trains are always made for a specific buyer – worries me. The response is strictly speaking true: with a handful of exceptions for piggybacks, including the O-Train, orders are always tailored to the buyer. However, in reality, this tailoring involves changes within certain parameters, such as train width, that differ greatly within Europe. Changes to parts that are uniform within Europe, such as the roofing, may lead to unforeseen complications. I don’t think the cost will be significant, but I can’t rule it out either, and I think the FRA should have been warier about this possibility.
The final worry is that the FRA states the cost of a high-speed train is $50 million, in the context of modification costs; these are stated to be $300,000 for a $50 million European high-speed trainset and $4.7 million for a Japanese one. The problem: European high-speed trainsets do not cost $50 million. They cost about $40 million. Japanese sets cost around $50 million, but that’s for a 16-car 400-meter trainsets, whereas European high-speed trainsets are almost always about 200 meters long, no matter how many cars they’re divided into. If the FRA is baking in cost premiums due to protectionism or bespoke orders, this is going to swamp the benefits of Euronorm-like regulations.
But cost concerns aside, the changes in the buff strength rules are an unmitigated good. The old rules require trainsets to resist 360-945 metric tons of force without deformation (360 for trains going up to 200 km/h, 945 beyond 200 km/h), which raises their mass by several tons per cars – and lightweight frames require even more extra mass. The new ones are based on crumple zones using a system called crash energy management (CEM), in which the train is allowed to deform as long as the deformation does not compromise the driver’s cab or the passenger-occupied interior, and this should not require extra train mass.
How does it affect procurement?
So far, the new rules, though telegraphed years in advance, have not affected procurement. With the exception of Caltrain, commuter railroads all over the country have kept ordering rolling stock compliant with the old rules. Even reformers have not paid much attention. In correspondence with Boston-area North-South Rail Link advocates I’ve had to keep insisting that schedules for an electrified MBTA must be done with modern single-level EMUs in mind rather than with Metro-North’s existing fleet, which weighs about 65 metric tons per car, more than 50% more than a FLIRT per unit of train length.
It’s too late for the LIRR to redo the M9, demanding it be as lightweight as it can be. However, New Jersey Transit’s MultiLevel III is still in the early stages, and the railroad should scrap everything and require alternate compliance in order to keep train mass (and procurement cost) under control.
Moreover, the MBTA needs new trains. If electrification happens, it will be because the existing fleet is so unreliable that it becomes attractive to buy a few EMUs to cover the Providence Line so that at least the worst-performing diesels can be retired. Under no circumstance should these trains be anything like Metro-North’s behemoths. The trains must be high-performance and as close as possible to unmodified 160 km/h single-level regional rail rolling stock, such as the DBAG Class 423, the Coradia Continental, the Talent II, or, yes, the FLIRT.
Metra is already finding itself in a bind. It enjoys its antediluvian gallery cars, splitting the difference between one and two decks in a way that combines the worst of both worlds; first-world manufacturers have moved on, and now Metra reportedly has difficulty finding anyone that will make new gallery cars. Instead, it too should aim at buying lightly modified European trains. These should be single-level and not bilevel, because bilevels take longer to unload, and Chicago’s CBD-dominant system is such that nearly all passengers would get off at one station, Millennium Station at the eastern edge of the Loop, where there are seven terminating tracks and (I believe) four approach tracks.
Ultimately, on electrified lines, the new rules permit trains that are around two thirds as heavy as the existing EMUs and have about the same power output. Substantial improvements in train speed are possible just from getting new equipment, even without taking into account procurement costs, maintenance costs, and electricity consumption. Despite its flaws, the new FRA regulation is positive for the industry and it’s imperative that passenger railroads adapt and buy better rolling stock.
The Value of Modern EMUs
I do not know how to code. The most complex actually working code that I have written is 48 lines of Python that implement a train performance calculator that, before coding it, I would just run using a couple of Wolfram Alpha formulas. Here is a zipped version of the program. You can download Python 2.7 and run it there; there may also be online applets, but the one I tried doesn’t work well.
You’ll get a command line interface into which you can type various commands – for example, if you put in 2 + 5 the machine will natively output 7. What my program does is define functions relevant to train performance: accpen(k,a,b,c,m,x1,x2,n) is the acceleration penalty from speed x1 m/s to speed x2 m/s where x1 < x2 (if you try the other way around you’ll get funny results) for a train with a power-to-weight ratio of k kilowatts per ton, an initial acceleration rate of m m/s^2, and constant, linear, and quadratic running resistance terms a, b, and c. To find the deceleration penalty, put in decpen, and to find the total, either put in the two functions and add, or put in slowpen to get the sum. The text of the program gives the values of a, b, and c for the X2000 in Sweden, taken from PDF-p. 64 of a tilting trains thesis I’ve cited many times. A few high-speed trainsets give their own values of these terms; I also give an experimentally measured lower air resistance factor (the quadratic term c) for Shinkansen. Power-to-weight ratios are generally available for trainsets, usually on Wikipedia. Initial acceleration rates are sometimes publicly available but not always. Finally, n is a numerical integration quantity that should be set high, in the high hundreds or thousands at least. You need to either define all the quantities when you run the program, or plug in explicit numbers, e.g. slowpen(20, 0.0059, 0.000118, 0.000022, 1.2, 0, 44.44, 2000).
I’ve used this program to find slow zone penalties for recent high-speed rail calculations, such as the one in this post. I thought it would not be useful for regional trains, since I don’t have any idea what their running resistance values are, but upon further inspection I realized that at speeds below 160 km/h resistance is far too low to be of any consequence. Doubling c from its X2000 value to 0.000044 only changes the acceleration penalty by a fraction of a second up to 160 km/h.
With this in mind, I ran the program with the parameters of the FLIRT, assuming the same running resistance as the X2000. The FLIRT’s power-to-weight ratio is 21.1 in Romandy, and I saw a factsheet in German-speaking Switzerland that’s no longer on Stadler’s website citing slightly lower mass, corresponding to a power-to-weight ratio of 21.7; however, these numbers do not include passengers, and adding a busy but not full complement of passengers adds mass to the train until its power-to-weight ratio shrinks to about 20 or a little less. With an initial acceleration of about 1.2 m/s^2, the program spits out an acceleration penalty of 23 seconds from 0 to 160 km/h (i.e. 44.44 m/s) and a deceleration penalty of 22 seconds. In videos the acceleration penalty appears to be 24 seconds, which difference comes from a slight ramping up of acceleration at 0 km/h rather than instant application of the full rate.
In other words: the program manages to predict regional train performance to a very good approximation. So what about some other trains?
I ran the same calculation on Metro-North’s M-8. Its power-to-weight ratio is 12.2 kW/t (each car is powered at 800 kW and weighs 65.5 t empty), shrinking to 11.3 when adding 75 passengers per car weighing a total of 5 tons. A student paper by Daniel Delgado cites the M-8’s initial acceleration as 2 mph/s, or 0.9 m/s^2. With these parameters, the acceleration penalty is 37.1 seconds and the deceleration penalty is 34.1 seconds; moreover, the paper show how long it takes to ramp up to full acceleration rate, and this adds a few seconds, for a total stop penalty (excluding dwell time) of about 75 seconds, compared with 45 for the FLIRT.
In other words: FRA-compliant EMUs add 30 seconds to each stop penalty compared with top-line European EMUs.
Now, what about other rolling stock? There, it gets more speculative, because I don’t know the initial acceleration rates. I can make some educated guesses based on adhesion factors and semi-reliable measured acceleration data (thanks to Ari Ofsevit). Amtrak’s new Northeast Regional locomotives, the Sprinters, seem to have k = 12.2 with 400 passengers and m = 0.44 or a little less, for a penalty of 52 seconds plus a long acceleration ramp up adding a brutal 18 seconds of acceleration time, or 70 in total (more likely it’s inaccuracies in data measurements – Ari’s source is based on imperfect GPS samples). Were these locomotives to lug heavier coaches than those used on the Regional, such as the bilevels used by the MBTA, the values of both k and m would fall and the penalty would be 61 seconds even before adding in the acceleration ramp. Deceleration is slow as well – in fact Wikipedia says that the Sprinters decelerate at 5 MW and not at their maximum acceleration rate of 6.4 MW, so in the decpen calculation we must reduce k accordingly. The total is somewhere in the 120-150 second range, depending on how one treats the measured acceleration ramp.
In other words: even powerful electric locomotives have very weak acceleration, thanks to poor adhesion. The stop penalty to 160 km/h is about 60 seconds higher than for the M-8 (which is FRA-compliant and much heavier than Amfleet coaches) and 90 seconds higher than for the FLIRT.
Locomotive-hauled trains’ initial acceleration is weak that reducing the power-to-weight ratio to that of an MBTA diesel locomotive (about 5 kW/t) doesn’t even matter all that much. According to my model, the MBTA diesels’ total stop penalty to 160 km/h is 185 seconds excluding any acceleration ramp and assuming initial acceleration is 0.3 m/s^2, so with the ramp it might be 190 seconds. Of note, this model fails to reproduce the lower acceleration rates cited by a study from last decade about DMUs on the Fairmount Line, which claims a 70-second penalty to 100 km/h; such a penalty is far too high, consistent with about 0.2 m/s^2 initial acceleration, which is far too weak based on local/express time differences on the schedule. The actual MBTA trains only run at 130 km/h, but are capable of 160, given long enough interstations – they just don’t do it because there’s little benefit, they accelerate so slowly.
Unsurprisingly, modern rail operations almost never buy locomotives for train services that are expected to stop frequently, and some, including the Japanese and British rail systems, no longer buy electric locomotives at all, using EMUs exclusively due to their superior performance. Clem Tillier made this point last year in the context of Caltrain: in February the Trump administration froze Caltrain’s federal electrification funding as a ploy to attack California HSR, and before it finally relented and released the money a few months later, some activists discussed Plan B, one of which was buying locomotives. Clem was adamant that no, based on his simulations electric locomotives would barely save any time due to their weak acceleration, and EMUs were obligatory. My program confirms his calculations: even starting with very weak and unreliable diesel locomotives, the savings from replacing diesel with electric locomotives are smaller than those from replacing electric locomotives with EMUs, and depending on assumptions on initial acceleration rates might be half as high as the benefits of transitioning from electric locomotives to EMUs (thus, a third as high as those of transitioning straight from diesels to EMUs).
Thus there is no excuse for any regional passenger railroad to procure locomotives of any kind. Service must run with multiple units, ideally electric ones, to maximize initial acceleration as well as the power-to-weight ratio. If the top speed is 160 km/h, then a good EMU has a stop penalty of about 45 seconds, a powerful electric locomotive about 135 seconds, and a diesel locomotive around 190 seconds. With short dwell times coming from level boarding and wide doors, EMUs completely change the equation for local service and infill stops, making more stops justifiable in places where the brutal stop penalty of a locomotive would make them problematic.
Scope Creep is the New Black
In 2009, studies began for a replacement of the Baltimore and Potomac (B&P) Tunnel. This tunnel, located immediately west of Baltimore Penn Station, has sharp curves, limiting passenger trains to about 50 km/h today. The plan was a two-track passenger rail tunnel, called the Great Circle Tunnel since it would sweep a wide circular arc; see yellow line here. It would be about 3 kilometers and cost $750 million, on the high side for a tunnel with no stations, but nothing to get too outraged about. Since then, costs have mounted. In 2014, the plan, still for two tracks, was up to $1 billion to $1.5 billion. Since then, costs have exploded, and the new Final Environmental Impact Statement puts the project at $4 billion. This is worth getting outraged about; at this cost, even at half this cost, the tunnel should not be built. However, unlike in some other cases of high construction costs that I have criticized, here the problem is not high unit costs, but pure scope creep. The new scope should be deleted in order to reduce costs; as I will explain, the required capacity is well within the capability of two tracks.
First, some background, summarized from the original report from 2009, which I can no longer find: Baltimore was a bottleneck of US rail transportation in the mid-19th century. In the Civil War, there was no route through the city; Union troops had to lug supplies across the city, fighting off mobs of Confederate sympathizers. This in turn is because Baltimore’s terrain is quite hilly, with no coastal plain to speak of: the only flat land on which a railroad could be easily built was already developed and urbanized by the time the railroad was invented. It took until the 1870s to build routes across the city, by which time the US already had a transcontinental railroad. Moreover, intense competition between the Pennsylvania Railroad (PRR) and the Baltimore and Ohio (B&O) ensured that each company would built its own tunnel. The two-track B&P is the PRR tunnel; there’s also a single-track freight tunnel, originally built by the B&O, now owned by CSX, into which the B&O later merged.
Because of the duplication of routes and the difficult geography, the tunnels were not built to high standards. The ruling grade on the B&P is higher than freight railroads would like, 1.34% uphill departing the station, the steepest on the Northeast Corridor (NEC) south of Philadelphia. This grade also reduces initial acceleration for passenger trains. The tunnel also has multiple sharp curves, with the curve at the western portal limiting trains today to 30 mph (about 50 km/h). The CSX tunnel, called Howard Street Tunnel, has a grade as well. The B&P maintenance costs are high due to poor construction, but a shutdown for repairs is not possible as it is a key NEC link with no possible reroute.
In 2009, the FRA’s plan was to bypass the B&P Tunnel with a two-track passenger rail tunnel, the Great Circle Tunnel. The tunnel would be a little longer than the B&P, but permit much higher speeds, around 160 km/h, saving Acela trains around 1.5 minutes. Actually the impact would be even higher, since near-terminal speed limits are a worse constraint for trains with higher initial acceleration; for high-performance trains, the saving is about 2-2.5 minutes. No accommodation was made for freight in the original plan: CSX indicated lack of interest in a joint passenger and freight rail tunnel. Besides, the NEC’s loading gauge is incompatible with double-stacked freight; accommodating such trains would require many small infrastructure upgrades, raising bridges, in addition to building a new tunnel.
In contrast, the new plan accommodates freight. Thus, the plan is for four tracks, all built to support double-stacked freight. This is despite the fact that there is no service plan that requires such capacity. Nor can the rest of the NEC support double-stacked freight easily. Of note, Amtrak only plans on using this tunnel under scenarios of what it considers low or intermediate investment into high-speed rail. Under the high-investment scenario, the so-called Alternative 3 of NEC Future, the plan is to build a two-track tunnel under Downtown Baltimore, dedicated to high-speed trains. Thus, the ultimate plan is really for six tracks.
Moreover, as pointed out by Elizabeth Alexis of CARRD, a Californian advocacy group that has criticized California’s own high-speed rail cost overruns, the new tunnel is planned to accommodate diesel trains. This is because since 2009, the commuter rail line connecting Baltimore and Washington on the NEC, called the MARC Penn Line, has deelectrified. The route is entirely electrified, and MARC used to run electric trains on it. However, in the last few years MARC deelectrified. There are conflicting rumors as to why: MARC used the pool of Amtrak electric locomotives, and Amtrak is stopping maintaining them as it is getting new locomotives; Amtrak is overcharging MARC on electricity; MARC wants fleet compatibility with its two other lines, which are unelectrified (although the Penn Line has more ridership than both other lines combined). No matter what, MARC should immediately reverse course and buy new electric trains to use on the Penn Line.
Freight trains are more complicated – all US freight trains are dieselized, even under catenary, because of a combination of unelectrified yards and Amtrak’s overcharging on electric rates. However, if freight through the Great Circle Tunnel is desired, Amtrak should work with Norfolk Southern on setting up an electric district, or else Norfolk Southern should negotiate trackage rights on CSX’s existing tunnel. If more freight capacity is desired, private companies NS and CSX can spend their own money on freight tunnels.
In contrast, a realistic scenario would ignore freight entirely, and put intercity and regional trains in the same two-track tunnel. The maximum capacity of a two-track high-speed rail line is 12 trains per hour. Near Baltimore Penn the line would not be high-speed, so capacity is defined by the limit of a normal line, which is about 24 tph. If there is a service plan under which the MARC Penn Line could get more than 12 tph at the peak, I have not seen it. The plans I have seen call for 4 peak tph and 2 off-peak tph. There is a throwaway line about “transit-like” service on page 17, but it’s not clear what is meant in terms of frequency.
Regardless of what the state of Maryland thinks MARC could support, 12 peak regional tph through Baltimore is not a reasonable assumption in any scenario in which cars remain legal. The tunnels are not planned to have any stations, so the only city station west of Baltimore Penn is West Baltimore. Baltimore is not a very dense city, nor is West Baltimore, most famous for being the location of The Wire, a hot location for transit-oriented development. Most of Baltimore’s suburbs on the Penn Line are very low-density. In any scenario in which high-speed rail actually fills 12 tph, many would be long-range commuters, which means people who live in Baltimore and work in Washington would be commuting on high-speed trains and not on regional trains. About the upper limit of what I can see for the Penn Line in a realistic scenario is 6 tph peak, 3-4 tph off-peak.
Moreover, there is no real need to separate high-speed and regional trains for reasons of speed. High-speed trains take time to accelerate from a stop at Baltimore: by the portal, even high-acceleration sets could not go much faster than 200 km/h. An in-tunnel speed limit in the 160-180 km/h area only slows down high-speed trains by a few seconds. Nor does it lead to any noticeable speed difference with electrified regional trains, which would reduce capacity: modern regional trains like the FLIRT accelerate to 160 km/h as fast as the fastest-accelerating high-speed train, the N700-I, both having an acceleration penalty of about 25 seconds.
The upshot is that there is no need for any of the new scope added since 2009. There is no need for four tracks; two will suffice. There is no need to design for double-stacked freight; the rest of the line only accommodates single-stacked freight, and the NEC has little freight traffic anyway. Under no circumstances should diesel passenger trains be allowed under the catenary, not when the Penn Line is entirely electrified.
The new tunnel has no reason to cost $4 billion. Slashing the number of tunnels from four to two should halve the cost, and reducing the tunnels’ size and ventilation needs should substantially reduce cost as well. With the potential time gained by intercity and regional trains and the reduced maintenance cost, the original budget of $750 million is acceptable, and even slightly higher costs can be justified. However, again because the existing two-track capacity can accommodate any passenger rail volume that can be reasonably expected, the new tunnel is not a must-have. $4 billion is too high a cost, and good transit activists should reject the current plan.
Train Weight and Safety
A recent New Jersey Transit train accident, in which one person was killed and more than a hundred was injured, has gotten people thinking about US rail safety again. New Jersey has the second lowest fuel tax in the US, and to avoid raising it, Governor Chris Christie cut the New Jersey Transit budget (see PDF-pp. 4-5 here); perhaps in reaction to the accident, Christie is announcing a long-in-the-making deal that would raise the state’s fuel tax. But while the political system has been discussing funding levels, transit advocates have been talking about regulations. The National Transportation Safety Board is investigating whether positive train control could have prevented the accident, which was caused by overspeed. And on Twitter, people are asking whether Federal Railroad Administration regulations helped protect the train from greater damage, or instead made the problem worse. It’s the last question that I want to address in this post.
FRA regulations mandate that US passenger trains be able to withstand considerable force without deformation, much more so than regulations outside North America. This has made American (and Canadian) passenger trains heavier than their counterparts in the rest of the world. This was a major topic of discussion on this blog in 2011-2: see posts here and here for an explanation of FRA regulations, and tables of comparative train weights here and here. As I discussed back then, FRA regulations do not prevent crumpling of passenger-occupied space better than European (UIC) regulations do in a collision between two trains, except at a narrow range of relative speeds, about 20-25 mph (30-40 km/h); see PDF-pp. 60-63 of a study by Caltrain, as part of its successful application for waivers from the most constraining FRA regulations. To the extent people think FRA regulations have any safety benefits, it is purely a stereotype that regulations are good, and that heavier vehicles are safer in crashes.
All of this is old discussions. I bring this up to talk about the issue of systemwide safety. Jacob Anbinder, accepting the wrong premise that FRA regulations have real safety benefits, suggested on Twitter that rail activists should perhaps accept lower levels of rail safety in order to encourage mode shift from much more dangerous cars toward transit. This is emphatically not what I mean: as I said on Twitter, the same policies and practices that lead to good train safety also lead to other good outcomes, such as punctuality. They may seem like a tradeoff locally within each country or region, but globally the correlation goes the other way.
In 2011, I compiled comparative rail safety statistics for the US (1 dead per 3.4 billion passenger-km), India (1 per 6.6 billion), China (1 per 55 billion), Japan (1 per 51 billion), South Korea (1 per 6.7 billion), and the EU (1 per 13 billion), based on Wikipedia’s lists of train accidents. The number for India is an underestimate, based on general reports of Mumbai rail passenger deaths, and I thought the same was true of China. Certainly after the Wenzhou accident, the rail activists in the developed world that I had been talking to stereotyped China as dangerous, opaque, uninterested in passengers’ welfare. Since then, China has had a multi-year track record without such accidents, at least not on its high-speed rail network. Through the end of 2015, China had 4.3 billion high-speed rail passengers, and by 2015 its ridership grew to be larger than the rest of the world combined. I do not have statistics for high-speed passenger-km, but overall, the average rail trip in China, where there’s almost no commuter rail, is about 500 km long. If this is also true of its high-speed rail network, then it’s had 2.15 trillion high-speed passenger-km, and 1 fatality per 54 billion. This is worse than the Shinkansen and TGV average of zero fatalities, but much better than the German average, which is weighed down by Eschede. (While people stereotype China as shoddy, nobody so stereotypes Germany despite the maintenance problems that led to the Eschede accident.)
I bring up China’s positive record for two reasons. First, because it is an example of how reality does not conform to popular stereotypes. Both within China and in the developed world, people believe China makes defective products, cheap in every sense of the term, and compromises safety; the reality is that, while that is true of China’s general environmental policy, it is not true of its rail network. And second, China does not have buff strength requirements for trains at all; like Japan, it focuses on collision avoidance, rather than on survivability.
The importance of the approaches used in Japan and on China’s high-speed rail network is that it provides safety on a systemwide level. By this I do not mean that it encourages a mode shift away from cars, where fatality rates are measured in 1 per hundreds of millions of passenger-km and not per tens of billions. Rather, I mean that the entire rail network is easier to run safely when the trains are lighter.
It is difficult to find exact formulas for the dependence of maintenance costs on train weight. A discussion on Skyscraper City, sourced to Bombardier, claims track wear grows as the cube of axle load. One experiment on the subject, at low speeds and low-to-moderate axle loads, finds a linear relationship in both axle load and speed. A larger study finds a relationship with exponents of 3-5 in both dynamic axle load and speed. The upshot is that at equal maintenance cost, lighter trains can be run faster, or, at equal speed, lighter trains make it easier to maintain the tracks.
The other issue is reliability. As I explained on Twitter, the same policies that promote greater safety also make the system more reliable, with fewer equipment failures, derailments, and slowdowns. On the LIRR, the heavy diesel locomotives have a mean distance between failures of 20,000-30,000 km, and the medium-weight EMUs 450,000 (see PDF-pp. 21-22 here). The EMUs that run on the LIRR (and on Metro-North), while heavier than they should be because of FRA requirements, are nonetheless pretty good rolling stock. But in Tokyo, one rolling stock manufacturer claims a mean distance between failures of 1.5 million km. While within Japan, the media responds to fatal accidents by questioning whether the railroads prioritize the timetable over safety, the reality is that the overarching focus on reliability that leads to low maintenance costs and high punctuality also provides safety.
In the US, especially outside the EMUs on the LIRR and Metro-North, the situation is the exact opposite. The mean distance between failures for the LIRR’s diesel locomotives is not unusually low: on the MBTA, the average is about 5,000 km, and even on the newest locomotives it’s only about 20,000 (State of the Commuter Rail System, PDF-pp. 8-9). The MBTA commuter rail system interacts with freight trains that hit high platforms if the boxcars’ doors are left open, which can happen if vandals or train hoppers open the doors; as far as I can tell, the oversize freight on the MBTA that prevents easy installation of high platforms systemwide is not actually oversize, but instead veers from the usual loading gauge due to such sloppiness.
Of course, given a fixed state of the infrastructure and the rolling stock, spending more money leads to more safety. This is why Christie’s budget cuts are important to publicize. Within each system, there are real tradeoffs between cost control and safety; to Christie, keeping taxes low is more important than smooth rail operations, and insofar as it is possible to attribute political blame for such low-probability events as fatal train accidents, Christie’s policies may be a contributing factor. My contention here is different: when choosing a regulatory regime and an overarching set of operating practices, any choice that centers high performance and high reliability at the expense of tradition will necessarily be safer. The US rail community has a collective choice between keeping doing what it’s doing and getting the same result, and transitioning operating practices to be closer to the positive results obtained in Japan; on safety, there is no tradeoff.
NEC Future: Moving Sideways
The Northeast Corridor high-speed rail investment studies are moving forward, and four days ago the FRA released an early environmental impact study on the subject, as part of the NEC Future program. The study moves in part in the right direction, in that it considers many different segment-level improvements (for example, specific bypasses of curvy segments), but it still isn’t quite going in the right direction. It’s not a bad study in itself, but it does have a lot of drawbacks, and I would like to discuss the ultimate problems with its approach.
The EIS studies three alternatives, as well as an obligatory No Build option.
Alternative 1 includes minimal investment: capacity improvements already under consideration, including new Hudson tunnels; grade-separation of at-grade rail junctions, including Shell interlocking between the Metro-North New Haven Line to Grand Central and the NEC, which imposes a severe speed limit (30 mph, the worst outside major city stations) and a capacity constraint; and a limited I-95 bypass of the legacy NEC route in eastern Connecticut, to avoid the existing movable bridges. The bulk of the expense under this alternative, excluding the predominantly commuter-oriented new Hudson tunnels, involves replacing or bypassing obsolete or slow bridges with faster segments. I have advocated such an approach in certain cases for years, such as the Cos Cob Bridge; if anything, Alternative 1 does not do this enough, but I do appreciate that it uses this solution.
Alternative 2 constructs HSR along the NEC route, except for a major deviation to serve Hartford. It is also bundled with various bypasses and new stations elsewhere: under this alternative, Philadelphia and Baltimore get new stations, with extensive urban tunneling to reach those stations. Alternative 3 does the same, but considers more deviations, including a tunnel between Long Island and New Haven, and an inland route through Connecticut, closer to I-84 than to I-95 and the legacy NEC; it also constructs dedicated HSR tracks between New York and Washington.
The EIS does not include cost figures. It includes travel time figures on PDF-p. 51, which seem to be based on unfavorable assumptions: Alternative 2, called Run 5, does New York-Boston in 2:17 for trains making a few major-city intermediate stops; the Alternative 3 proposals vary widely depending on alignment, of which the fastest, the I-84 inland route, takes 1:51, again making intermediate stops.
First, the EIS includes service plan elements, stating the projected frequency of regional and express trains using the tracks. It also talks about clockface scheduling and proposes a pulse in Philadelphia, allowing timed transfers in all directions between local and express intercity trains as well as trains on the Keystone corridor. It goes further and discusses regional rail on the intercity tracks in the alternatives that include extensive new construction. In these ways, it focuses on regionwide rail integration far more than previous plans.
Second, in general, the correct way to think about NEC investment is component by component. The EIS gets closer to this ideal, by considering many different route combinations north of New York, and advancing several of them under the Alternative 3 umbrella.
And third, the concept of Alternative 1 is solid. In many cases, it is possible to bundle a trip time or capacity improvement into the replacement of an obsolete structure at very low additional cost. The example I keep coming back to is the Cos Cob Bridge, but it is equally true of the movable bridges east of New Haven. I also greatly appreciate that Alternative 1 recognizes the importance of grade-separating railroad junctions.
Ultimately, the EIS does not take the three good concepts – integrated service planning, component-by-component thinking, and bundling trip-time improvements when the marginal cost of doing so is low – to their full conclusion. Thus, there is no attempt at running intercity trains at high speed on shared track with commuter rail with timed overtakes, as I have proposed for both the inner New Haven Line and the Providence Line. On the contrary, the plan for capacity investment on the Providence Line includes extensive three-tracking, rather than limited, strategic four-track bypass segments. This cascades to the trip times, which are quite slow between New York and New Haven (1:08, for an average speed of 103 km/h), and a bit slower than they could be between Providence and Boston (24 minutes, whereas about 21 is possible with about zero investment into concrete).
The concepts of Alternatives 1, 2, and 3 represent bundles of levels of investment. This is the wrong approach. Alternatives 2 and 3 include new tunneled city-center stations in Baltimore and Philadelphia; but wouldn’t we want to consider city-center station tunnels in those two cities separately? It’s possible for one to turn out to be cost-effective but not the other. It’s possible for neither to be cost-effective, but for other improvements included in Alternative 2, such as curve modification around Metropark and Metuchen, to pencil out.
There’s far more interaction between different macro-level alignments, by which I mean such questions as “inland route or coastal route?” and “serve Hartford on the mainline or put it on a branch?”, than between such micro-level investments as individual curve modifications and urban tunnels. This means that instead of discrete alternatives, there should be one umbrella, taking in Alternative 2 and 3 variants, proposing all of those options as possibilities. A future study, with detailed cost figures, could then rank those options in terms of trip time saving per unit of cost, or in terms of social and financial ROI. This way, there would be concrete proposals for what a $5 billion plan, a $10 billion plan, a $20 billion plan, and so on would be.
Two elements in the study are inexcusable. First, the service plan description explicitly keeps Amtrak’s current separation of premium-fare Regionals and even-more-premium-fare Acelas. This is not how the rest of the world structures HSR: even when the HSR fares are substantially higher than the legacy rail fares, as in Spain, the fare per passenger-km is not very high, and is not targeted exclusively at business travelers. In France, the intercity fare (including TGVs, which are the bulk of French intercity traffic) was on average €0.112 per passenger-km in 2011. Premium service is provided on the same TGVs as standard service, in first-class cars. In contrast, Amtrak charges about $0.29 per passenger-km on the Regional and $0.53 on the Acela.
And second, the investment alternatives appear to include more tunneling than is necessary. I will focus on the Hartford-Providence-Boston segment in Alternative 2, since it is less sensitive to assumptions on commuter rail track-sharing than the segments overlapping the New Haven Line. It is possible to go all the way from Hartford to the western margin of the Providence built-up area without any tunneling, and without outrageous bridging; see a past post of mine on the subject here, which concludes that it’s better to just go parallel to I-95 for trip time reasons. In Providence, tunnels are unavoidable, but can still be limited to short segments, mixed with elevated routes along pre-impacted freeway corridors. When I looked at it two years ago, I saw an alignment with just 2 km of tunnel, in Providence itself. In contrast, run A in figure 9 on PDF-p. 56 says that tunnels are about 27% of new construction between Hartford and Boston, which consists of, at a minimum, about 100 km of track between Hartford and Providence.
The EIS is a step in the right direction, insofar as it does consider issues of integrated service planning and prioritizing construction based on where it can be cheaply bundled into bridge replacement. However, it fails to consider cost limitations, as seen in the excessive tunneling proposed even in areas where high-speed tracks can run entirely above ground. It’s considering more options, which is good, but, Alternative 1, while representing a golden concept, is not sufficiently developed.
What I would like to see from a study in this direction is a mixture of the following:
- Discussion of how to avoid tunnels, including various tradeoffs that have to be made (for example, above-ground construction may require more takings). Generally, I want to see much less tunneling than is currently proposed.
- A well-developed incremental option, similar to Alternative 1 but more extensive, including for example I-95 bypasses all the way from New Haven to Kingston and along strategic segments of the New Haven Line, such as in Port Chester and Greenwich.
- Greater integration with regional rail; one litmus test is whether the Providence Line is proposed to be three-tracked for long stretches, or four-tracked at a key bypass station (the options are Sharon and the Route 128-Readville segment), and another is discussion of high-acceleration electric multiple units on the Providence Line and the Penn Line.
- Unbundling of projects within each alignment – there is no need to, for example, consider the Philadelphia and Baltimore tunnels together (I also think neither is a good idea, but that’s a separate discussion). The view should be toward an optimal set of projects within each alignment, since macro-level decisions such as whether to serve Hartford are more political than micro-level ones of which curves to fix. This permits explicit discussions such as “would you be willing to spend $2 billion and slow through-trains by 9 minutes to serve Hartford?”.
Except for the first, all are kind of present in this study, but in insufficient amount for me to view it as truly a step forward. The ultimate goal must be HSR in the Northeast on a reasonable budget – closer to $10 or even $20 billion than to the Amtrak Vision’s proposed $150 billion – and this requires carefully looking at which scope is required and which is not. The EIS has elements that can be used toward that goal, but ultimately it is a step sideways, not forward or in the wrong direction.
The Magic Triangle: Infrastructure-Timetable-Rolling Stock
In the last month, Amtrak decided not to purchase additional Acela cars, but instead replace the Acela fleet ahead of time, and try to buy trains that aren’t compliant with FRA regulations. More recently, Amtrak and the California HSR Authority decided to bundle their orders together. The latter decision drew plenty of criticism from some good transit advocates, such as Clem Tillier, and even the former decision did. Clem explained,
The whole notion of buying quicker trains for the NEC is ridiculous– the existing Acela Express trains have plenty of oomph (16 kW/tonne) to do anything they need to do. “Lighter” and “faster” isn’t the key to anything on the NEC, and dropping in a higher-performance train will not lead to material trip time improvements. They need to speed up the slow bits first, which isn’t something you do by blowing money on trains.
Clem’s criticism got a fair amount of flak in comments, from me and others, for underestimating how important getting around FRA regulations is. What nobody said in comments, and I only realized after the discussion died out, is how the choice of rolling stock depends heavily on what Amtrak plans to do with infrastructure and service planning in the Northeast. It doesn’t make sense in any case to tether Amtrak’s plans for a corridor that’s in many ways globally unique to the California HSR Authority’s for a fairly standard HSR implementation. But what rolling stock is required, and thus how bad the tethering is, depends on a concrete plan for infrastructure and schedule.
At the highest level, the unique issue with the Northeast Corridor is that significant parts can’t be feasibly upgraded to more than 200-250 km/h or easily bypassed, while others can. This means that there’s a tradeoff between top speed and cant deficiency, and the optimal choice depends on how much investment there is into speeding up segments. In any case it’s critical to improve station throats, interlockings, and railroad junctions, but after the 50 and 100 km/h zones are dealt with, the remaining questions are still nontrivial.
The more money is invested, the less it makes sense to run a 270 mm-cant deficiency, 250 km/h Pendolino, and the more it makes sense to run a Talgo AVRIL or E5/E6, both of which are capable of 350 km/h but only about 180 mm of cant deficiency (or N700-I, which is on paper capable of 330 km/h and about 135 mm and in practice could probably be run at 360 km/h and 175 mm). If there’s one segment that tilts the decision, it’s New Haven-Providence: using the legacy Shore Line, even with heavy upgrades, limits speeds and favors high cant deficiency, while bypassing it on I-95 favors high top speeds. But even the New York-Washington segment of today has a few curves strategically located at the worst locations, which make higher tilt degree a benefit.
In medium-speed territory, the Pendolino versus E5/AVRIL/N700-I decision is the muddiest. I ran rough simulations on an upgraded New Haven Line, with bypasses including those I advocated as a first step but also additional ones in the more difficult Stamford-New Haven segment. A train with E5 cant deficiency and N700-I acceleration did New York-New Haven in 32 minutes, and a Pendolino with all cars powered did it in 30. Neither is a standard trainset, though the former is very close to standard (and the Talgo AVRIL is also quite close). The Pendolino as it is, with about half the cars powered, has low power by HSR standards, and this is a problem for accelerating back from a slow zone at medium speed. With all cars powered (which is feasible, at higher acquisition cost) it’s still far from turbocharged, but can change speed more easily. An off-the-shelf Pendolino would not beat an E5 or AVRIL or N700-I on such a corridor, and of course would not beat it south of New York or north of New Haven.
Since nonstandard trains cost more, it’s important to also decide whether they’re worth the cost. Bearing in mind that Amtrak said a new noncompliant trainset costs $35-55 million, which is above the range for 8-car trains (China pays about $4 million per 350+ km/h car), so it may already be factoring in a premium, paying more for trains is worth it whenever the benefits to passengers are noticeable enough. This, like choosing very high-speed rolling stock rather than a Pendolino, is the most effective at high levels of infrastructure investment. An off-the-shelf Pendolino is good enough for most applications. So is an off-the-shelf N700-I without tilt. It’s okay to be 15 minutes slower than the cutting edge if the cutting edge is too expensive. But the effect of 15 minutes on ridership is more pronounced if it’s the difference between 1:35 and 1:50 than if it’s the difference between 3:00 and 3:15. In addition, the faster the service is, the more revenue each train earns, and this allows spreading the extra acquisition cost among more passengers.
Another factor that’s neglected, at least in public statements, is the service plan. Amtrak service is heavily padded: the fastest northbound Acela is scheduled to do Providence-Boston in 47 minutes, but in the opposite direction it’s 34. Remove the Route 128 stop and this can get close to 30 or even below it. About the fastest trains can go with no schedule padding is 19.25 minutes, and reasonable but not onerous padding raises it to about 20.5. Clearly, more of the difference comes from operating efficiencies than from any speed raising; the Acela already goes 240 km/h between Providence and Boston and already has about 180 mm (7″) cant deficiency.
The limiting factor here is more MBTA ownership and operating culture. A good service plan would make it clear how trains can share the corridor (and the same is true on the New Haven Line, another unduly slowed commuter-owned segment), and because MBTA trains are so slow, any cooperation would involve public statements regarding upgrades to the MBTA. The Acela has level boarding at every stop except New London, which is the easiest to cut out and should be bypassed together with the rest of Shore Line East. It’s the MBTA that has non-level boarding, which remains one of the biggest schedule risks, requiring plenty of recovery time to deal with possible long dwell times coming from above-average crowds.
The problem is that Amtrak has made no statements regarding how to integrate the three legs of the magic triangle. It proposed the Vision plan, which even political transit bloggers like Ben Kabak note the extreme cost of; there’s no funding, and the first segment for which it’s trying to obtain funding, the Gateway Tunnel, is very far from the top priority for speed or even for intercity rail capacity. It now proposes new rolling stock, but is unclear about what the trains are supposed to do except be very fast. (Bundling with a new-build line like California makes sense only if all curves are straightened to a radius of 4+ kilometers, even extremely expensive ones.)
Perhaps it’s a feature of opaque government, that Amtrak refuses to say how much money it needs to meet each timetable and capacity goal. For example, it could say that if Congress gives it $10 billion it could reduce travel time from Washington to Boston from the present 6:45 to 5:45 while also running a peak of 4 long trains per hour at that speed. (I think for $10 billion it’s possible to get down to 3:30 or at worst 4:00, but this is a matter of cost control and not just transparency, though transparency can indirectly lead to better cost control.) This would involve heavy cooperation with the commuter railroads that share its tracks and joint plans, as well as detailed public plans for how much to spend on each segment and for what purpose. This is routine in Swiss rail infrastructure planning, since all major projects have to be approved by referendum, but does not happen in the US. It could be that Amtrak knows what it’s doing but acts like it doesn’t because the structure of government in the US is such that these decisions are made behind closed doors.
But more likely, Amtrak doesn’t know what it’s doing, and is just proposing new initiatives that make it seem forward-looking. Changing FRA rules is an unmixed blessing. Bundling an order with California HSR is not. The fact that Amtrak is doing so, while keeping mum about even what kind of rolling stock it thinks it needs, suggests that it reverses the usual way reform should be: instead of a need for reform producing good results and thence good headlines, a need to get good headlines about reform produces reform ideas that sound good. Some of those good-sounding ideas really are good, but not all are. It’s important for good transit advocates to distinguish the two both privately and publicly.
I feel like in the last two years, we’ve seen important American transit and railroad managers say correct things. Shortly after I started making noise in comments about New York’s outsized subway construction costs, Jay Walder said as much in a report entitled Making Every Dollar Count. Joe Lhota proposed through-running on commuter rail as a solution to improve efficiency. Scott Stringer, too, talked publicly about comparative construction costs, and for all of my criticisms of transit managers who say that, I thought it was enough for him to say that as a political candidate for a medium-term office to deserve my endorsement for the mayoral election, which he unfortunately bowed out of. The FRA proposed to start working on new rules for rolling stock last year. At Amtrak, we’ve just now seen Joseph Boardman propose noncompliant rolling stock. Perhaps I’d be more optimistic if Walder and Lhota had stayed at the MTA for longer to implement their positive reform ideas, instead of using it as a springboard to secure a higher-paying job or run for mayor, but increasingly it looks like the good reform talk is not generally accompanied by good actions.
This is, again, where good transit advocates can have the most influence. We more or less know which reforms are required and which are not. There are disagreements at times (Clem, for one, has much better credentials as a good transit activist than I do), but on most of the agenda items there’s agreement. We already know what details we might want to see from a good plan of action, and the advantage of this is that we can check proposed plans against them. That Amtrak’s gotten so many details wrong suggests that it still doesn’t know what the best practices for rail construction are, even if the basic idea of getting around FRA rules is sound. I wish I didn’t have to say it, but I’ll believe Amtrak’s improved when I see it.
Quick Note: Good News Week
Via Systemic Failure, I learn that the FRA is finally reforming its train safety regulations on its own. This is an amazing development, partial as it is. This appears to derive from the FRA’s previous research into crash energy management, which concluded that buff strength alone did poorly at protecting train occupants. This development is especially good for the MBTA and Metra, as agencies that could make large orders, especially of EMUs if they electrify (and both have good reason to); this will allow them to obtain better EMUs, for example measured by weight, than currently run in New York and Philadelphia.
Unfortunately, the reforms are partial, and lack two elements. First, they start from past crash tests, rather than from good rolling stock, and may still require imports to undergo substantial modifications; this is not a problem for large orders, but tends to raise the unit cost for small orders. That said, the rules are being developed in consultation with representatives from many rolling stock vendors, not only the large ones as with Caltrain’s waiver application but also smaller ones such as Nippon Sharyo and Stadler. Second, they do nothing about operating rules as opposed to procurement rules; these include brake tests, cant deficiency rules (only partially reformed), and so on. Still, count this as a positive development for the FRA.
The other good transit news: the Florida East Coast Railway, a Class II railroad primarily carrying intermodal traffic between Jacksonville and Miami, is announcing a privately-funded $1 billion project to build a medium-speed line from its mainline to Orlando and run passenger trains between Orlando and Miami, making the trip in 3 hours. This corresponds to an average speed of about 80 mph, just under 130 km/h, or in other words the same as that achieved by the supposedly high-speed Acela between New York and Washington.
