The High-Speed Rail Germany Needs

I’ve argued in two previous posts that Germany needs to build a complete high-speed rail network, akin to what China, Japan, France, South Korea, and Spain have built. Here is the network that Germany should build in more detail:

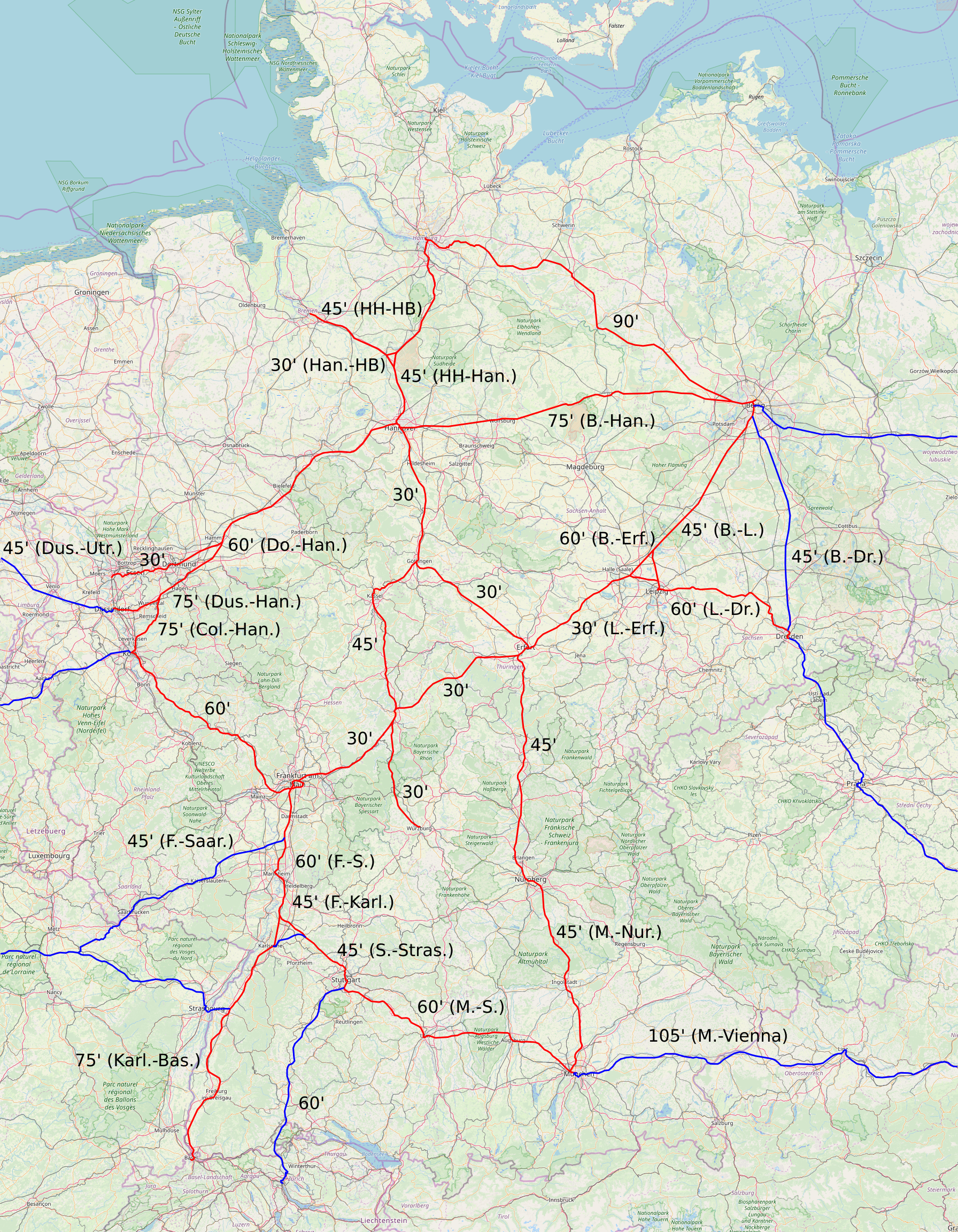

The red lines denote high-speed lines, some legacy 250-280 km/h lines but most built to support 300-320 km/h, that are justifiable within the context of domestic travel. Some of these already exist, such as the Frankfurt-Cologne line and the majority of the Berlin-Munich line; Berlin-Hamburg is a legacy line upgraded to 230, currently tied with Frankfurt-Cologne for fastest average speed between two major cities in Germany. A handful of red lines are key legacy connections, i.e. Dresden-Leipzig and Dortmund-Duisburg. Some more detail on the red lines is available in Google Maps.

The blue lines denote high-speed lines, generally built to 300, that only make sense in an international context. The lines in France are the LGV Est and its short low-speed branch across the border to Saarbrücken. In Belgium the line preexists as well as HSL 3 and HSL 4, but is quite slow, averaging only 140 km/h from Brussels to Aachen thanks to a combination of a slow segment to Leuven and a speed-restricted western approach to Liege. In the Netherlands, Switzerland, Czechia, Austria, and Poland the lines are completely speculative, though in Czechia a high-speed line from Prague to Dresden is under study.

Update 8/19: here is another map of the same network, color-coded differently – red is proposed lines (most by me, a few officially), yellow is lines under construction, blue is existing lines, black is low-speed connections. Note that outside Berlin’s northern approaches, urban approaches are not colored black even if they’re slow.

Trip times

To compute trip times, I dusted off my train performance calculator, linked here. The parameters I used are those planned for the next-generation Velaro (“Velaro Novo“), i.e. a power-to-weight ratio of 20.7 kW/t and an initial acceleration rate of 0.65 m/s^2; the quadratic air resistance term is 0.000012, as any higher term would make it impossible to reach speeds already achieved in tests. On curves, the lateral acceleration in the horizontal plane is set at 2.09 m/s^2 on passenger-priority lines, mirroring what is achieved on Frankfurt-Cologne, and 1.7 elsewhere, accounting for lower superelevation.

These are aggressive assumptions and before running the code, I did not expect Berlin-Munich to be so fast. With intermediate stops at Erfurt, Nuremberg, and maybe also Ingolstadt, this city pair could be connected in 2.5 hours minus a few minutes for interchange time at the terminals. In general, all trip times printed on the map are a few minutes slower than what is achievable even with some schedule padding, corresponding to dwell times at major through-stations plus interchange at terminals. The upshot is that among the largest metro areas in Germany, the longest trips are Hamburg-Stuttgart at 3:30 minus change and Hamburg-Munich at 3:15 minus change; nothing else is longer than 3 hours.

The stopping pattern should be uniform. That is, every 320 km/h train between Berlin and Munich should stop exactly at Berlin Südkreuz, Erfurt, Nuremberg, and maybe Ingolstadt. If these trains skip Ingolstadt, it’s fine to run some 250 km/h trains part of the way, for example between Munich and Nuremberg and then northwest on legacy track to Würzburg and Frankfurt, with the Ingolstadt station added back. Similarly, from Hamburg south, every train should stop at Hanover, Göttingen, Kassel, and Fulda.

In certain cases, the stopping pattern should be decided based on whether trains can make a schedule in an exact number of quarter-hours. That is, if it turns out that Munich-Nuremberg with an intermediate stop in Ingolstadt takes around 42 minutes then the Ingolstadt stop should be kept; but if it takes 46 minutes, then Ingolstadt should be skipped, and instead of running in the depicted alignment, the line should stay near the Autobahn and bypass the city in order to be able to make it in less than 45 minutes. I think Ingolstadt can still be kept, but one place where the map is likely to be too optimistic is Stuttgart-Munich; Ulm may need to be skipped on the fastest trains, and slower trains should pick up extra stops so as to be 15 minutes slower.

Frequency and service planning

Today, the frequency on the major city pairs is hourly. Under the above map, it should be half-hourly, since the faster trip times will induce more ridership. As a sanity check, TGVs connect Paris with each of Lyon’s two stations hourly off-peak and twice an hour at the peak. Paris is somewhat larger than the entire Rhine-Ruhr, Lyon somewhat smaller than Stuttgart or Munich and somewhat larger than the Rhine-Neckar. But the ICE runs somewhat smaller trains and has lower occupancy as it runs trains on a consistent schedule all day, so matching the peak schedule on the TGV is defensible.

The upshot is that Berlin can probably be connected every 30 minutes to each of Hamburg, Munich, Frankfurt, Cologne, Düsseldorf, and the Ruhr proper. Frankfurt-Munich is likely to be every 30 minutes, as are Hamburg-Frankfurt and Hamburg-Munich. To further improve network connectivity, the schedule at Erfurt should be set in such a way that Hamburg-Munich and Berlin-Frankfurt trains are timed with a cross-platform transfer, regardless of the pulse anywhere else. A few connections to smaller cities should be hourly, like Berlin-Bremen (with a timed transfer at Hanover to Hamburg-Frankfurt or Hamburg-Munich), Leipzig-Munich, Leipzig-Frankfurt, and Frankfurt-Basel.

The loop track around Frankfurt is based on a real plan for mainline through-tracks at the station, currently in the early stages of construction. The near-Autobahn loop is not included, but such a connection, if done at-grade, could provide value by letting trains from Munich enter the station from the east and then continue northwest toward Cologne without reversing direction.

If the international connections are built as planned, then additional hourly and even more frequent connections can be attractive. Zurich-Stuttgart might well even support a train every half hour, going all the way to Frankfurt and thence to either Cologne or Berlin. Similarly, Berlin-Frankfurt-Paris could plausibly fill an hourly train if Frankfurt-Paris is cut to 2:30 via Saarbrücken, and maybe even if it takes three hours via Karlsruhe.

The one exception to this interconnected mesh is Fulda-Würzburg. The Hanover-Würzburg line was built as a single 280 km/h spine through West Germany with low-speed branches down to Frankfurt and Munich. Unfortunately, completing the Würzburg-Nuremberg segment has little value: Munich-Frankfurt would be almost as fast via Stuttgart, and Hamburg-Munich would be half an hour faster via Erfurt with not much more construction difficulty on Göttingen-Erfurt. Fulda-Würzburg should thus be a shuttle with timed transfers at Fulda, potentially continuing further south at lower speed to serve smaller markets in Bavaria.

Cost

The domestic network depicted on the map is 1,300 km long, not counting existing or under-construction lines. Some lines require tunneling, like Erfurt-Fulda-Frankfurt, but most do not; the heaviest lifting has already been done, including between Erfurt and Nuremberg and around Stuttgart for Stuttgart 21 and the under-construction high-speed line to Ulm. I doubt 100 km of tunnel are necessary for this network; for comparison, Hanover-Würzburg alone has 120 km of tunnel, as the line has very wide curve radii to support both high-speed passenger rail and low-speed freight without too much superelevation. The cost should be on the order of 30-40 billion euros.

The international network is more complex. Berlin-Prague is easy on the German side and even across the border, and the only real problems are on the Czech side, especially as Czech planners insist on serving Usti on the way with a city center station. But Stuttgart-Zurich is a world of pain, and Frankfurt-Saarbrücken may require some tunneling through rolling terrain as well, especially around Saarbrücken itself.

Even with the international lines added in, the German share of the cost should not be too onerous. Getting everything in less than 50 billion euros should not be hard, even with some compromises with local NIMBYs. Even on an aggressive schedule aiming for completion by 2030, it’s affordable in a country where the budget surplus in 2018 was €58 billion across all levels of government and where there are signs of impending recession rather than inflation.

With its mesh of medium-size cities all over the country following plausible lines, Germany is well-placed to have the largest high-speed rail network in Europe. It has the ability to combine the precise scheduling and connections of Switzerland and the Netherlands with the high point-to-point speeds of France and Spain, creating a system that obsoletes domestic flights and competes well with cars and intercity buses. The government can implement this; all it takes is the political will to invest in a green future.
